doco
Tacho
Digital Tachograph with AI Image Analysis Engine and drive recorder.
TRX3208T
A simple, feature-rich digital tachograph equipped with a dashcam function that supports up to 8 FHD-quality cameras, including the standard front camera. In addition to allowing remote viewing of recorded footage, it supports driver safety management by utilizing an AI image analysis engine and a dedicated DMS camera.
* Service will be launched in May 2026
Base Price：
Open
Monthly rental：
2,680
円/台（税込2,948円）
* Installation cost is not included.
Basic Information
Features

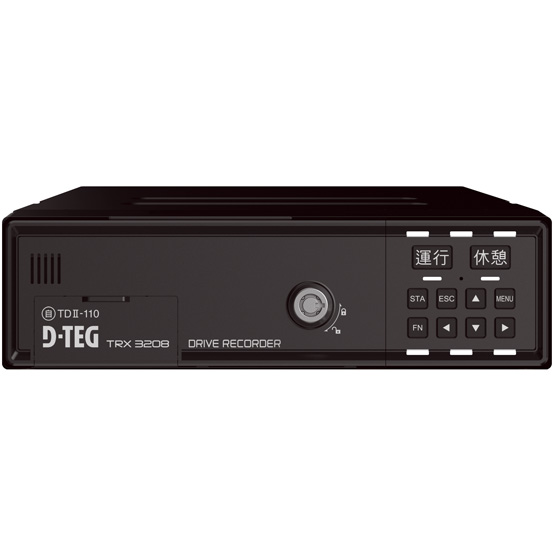

D-TEG製 TRX3208T
A simple, feature-rich digital tachograph equipped with a dashcam function that supports up to 8 FHD-quality cameras, including the standard front camera. In addition to allowing remote viewing of recorded footage, it supports driver safety management by utilizing an AI image analysis engine and a dedicated DMS camera.
GNSS Positioning Satellite System
The device uses five satellite positioning systems: US GPS, Japan's MICHIBIKI (QZSS], Russia's GLONASS, Europe's Galileo, and China's BeiDou, allowing it to obtain more accurate location information.
Transmission Interval
Location data is received once every 10 seconds. On DoCoMAP, you can also directly use features such as traffic information and Street View via Google Maps.
docomapPLUS Support
Supports the docomapPLUS application for DoCoMAP, which records operation status using a smartphone, enabling real-time recording and management of operation status linked to vehicle location information in the cloud, as well as daily operation reports and labor management.
DoCoMAP Support
In addition to real-time location information, vehicle travel tracing, operation history, and a time machine function that allows the location of all vehicles to be checked are stored for one year and can be checked at any time. In addition, rain cloud information, company and shipper information, and more can be easily checked on the map screen.
Dashboard Support
A simple and easy-to-understand administrator-only page. Location information sent from devices and operation status data sent from dedicated applications can be managed in the cloud. In addition, you can access the Dashboard anytime, anywhere from your browser to check the data.
Dangerous driving detection
Accurate speeds from 3-axis acceleration sensors and vehicle speed pulses can be used to detect dangerous behaviors such as speeding, sudden acceleration/deceleration, and sharp turns, and to notify the administrator. Administrators are notified and hazardous behaviors can be checked at any time from the event list.
LTE support
The device can be used within LTE areas nationwide. It is 5 times faster than the conventional communication standard (3G) and allows administrators to manage location information immediately.
DMS functionality with AI image analysis
The drive recorder's AI image analysis engine supports safe driving through DMS.

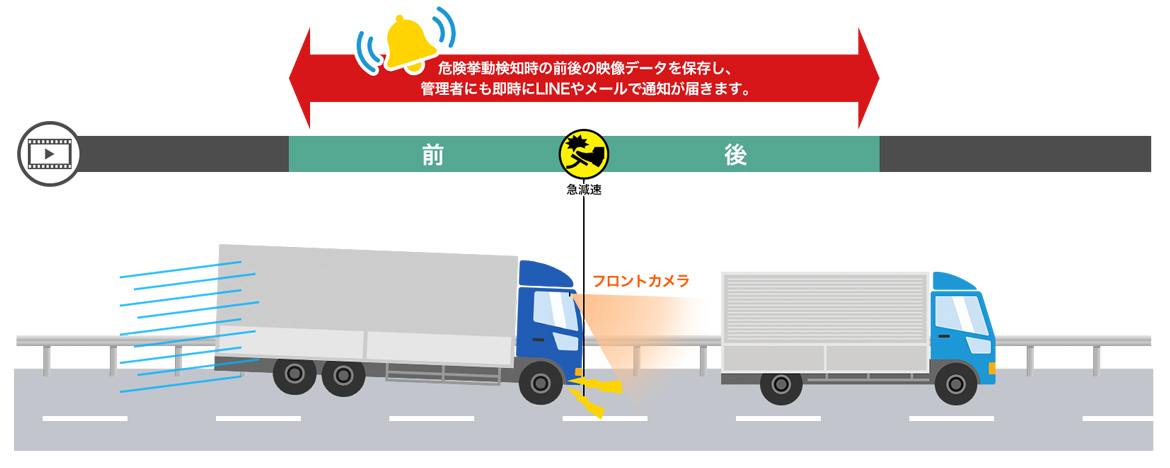

Recording Retention and Notification
When dangerous behavior such as sudden steering or abrupt acceleration/deceleration are detected, the system automatically uploads 20 seconds of video and audio (12 seconds before and 8 seconds after the event) to the cloud. Uploaded videos can be viewed any time via the DoCoMAP interface.
Additionally, because the system can immediately send notifications via LINE or email when dangerous behavior is detected, administrators can monitor driver safety in real time.
If dangerous behaviour is detected, you will be notified. In addition, you can check the recorded video by clicking on the URL.
You can view the record video of the incident on docomap VIEW.

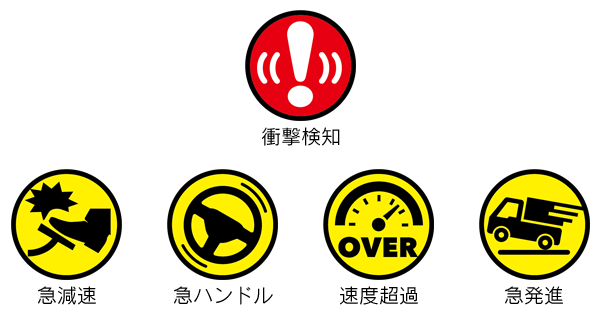

Dangerous Behavior Detection
Maintains the full functionality of the drive recorder device while also supporting detection of five types of dangerous driving behaviors obtained from the TRX3208T. Using a 3-axis accelerometer and precise speed measurement based on vehicle speed pulses, it detects dangerous driving behavior. Additionally, remote video retrieval is also possible.

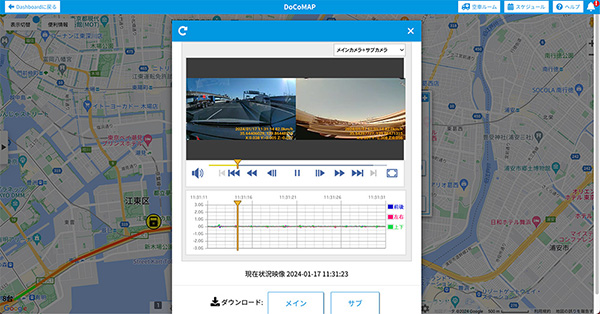

Check real-time and SD card video
You can remotely acquire and then view both real-time and recorded video from the vehicle route tracking screen.
* Available when the vehicle engine is on and power is supplied to the main terminal.
Location tracking video
Live video

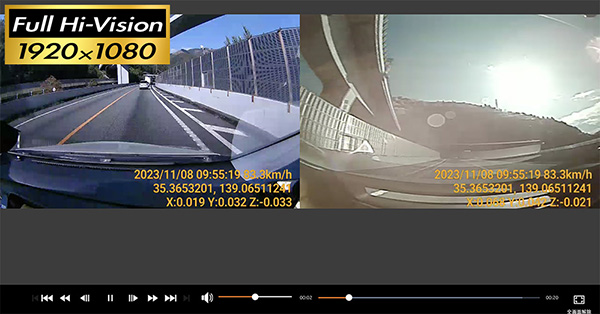

Up to 8 Full HD Cameras
In addition to the standard front-facing Full HD camera, this high-performance device can simultaneously record footage from up to 8 cameras, including interior and exterior cameras.
Additionally, the AI image analysis engine enables safety management when used with dedicated DMS cameras.
DMS (Optional)
By installing a DMS camera, the AI image analysis engine can detect instances of drowsy driving, distracted driving, cell phone use, and smoking.
* A separate DMS camera is required to use this feature.
Left-side Blind Spot Detection (Optional)
Through an AI image analysis engine and left-side camera, this system helps prevent accidents caused hazards in the vehicle's left-side blind spot.
* This feature detects people, cars, and motorcycles.
* A dedicated camera is required to use this feature.
